The model PHS is a high speed working center with fixed portal and mobile table solution characterized by a very compact and ergonomic line. The planning with the aid of the FEM system has allowed to optimize the calculation to finished elements making the particularly rigid structures of this model with the total elimination of the vibrations in phase of milling.

Technical specifications

	PHS P1	PHS FIVE	PHS	PHS 680FIVE
Longitudinal Travel	1200 • 1600 mm	1200 • 1600 mm	800 • 1200 • 1600 mm	800 mm
Cross Travel	1200 mm	1200 mm	600 • 800 • 900 mm	600 mm
Vertical Travel	500 • 600 mm	600 mm	450 - 700 mm	450 mm
Feeds	0 - 30000 mm/1'	0 - 30000 mm/1'	0 - 40000 mm/1`	0 - 40000 mm/1`
Brushless AC spindle motor	17 - 30 kw	7 - 20 kw	17 - 38 kw	7 - 20 kw

Available models

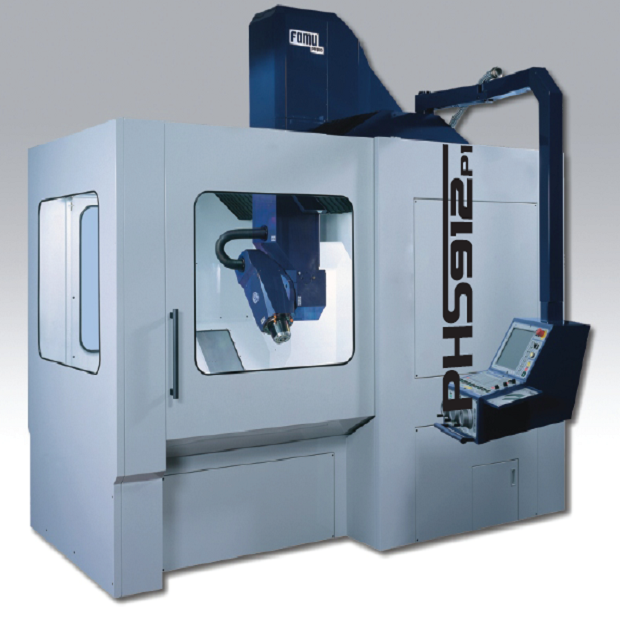

PHS P1

	PHS P1
Longitudinal Travel	1200 • 1600 mm
Cross Travel	1200 mm
Vertical Travel	500 • 600 mm
Feeds	0 - 30000 mm/1'
Brushless AC spindle motor	17 - 30 kw

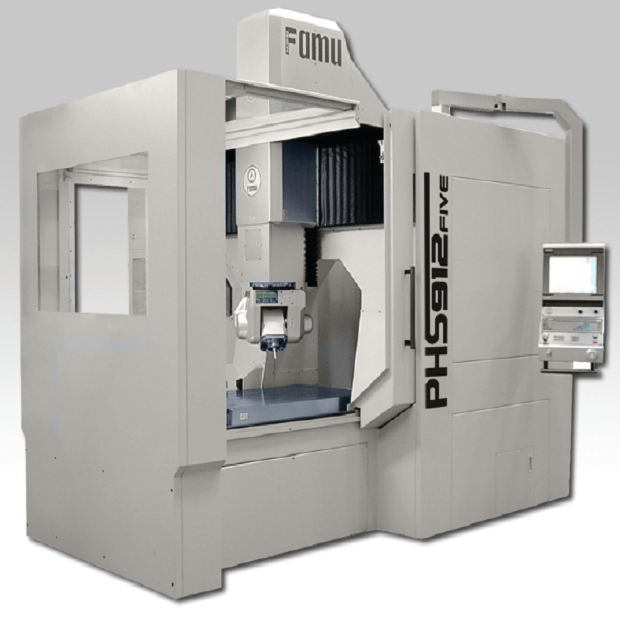

PHS FIVE

	PHS FIVE
Longitudinal Travel	1200 • 1600 mm
Cross Travel	1200 mm
Vertical Travel	600 • 700 mm
Feeds	0 - 30000 mm/1'
Brushless AC spindle motor	7 - 20 kw

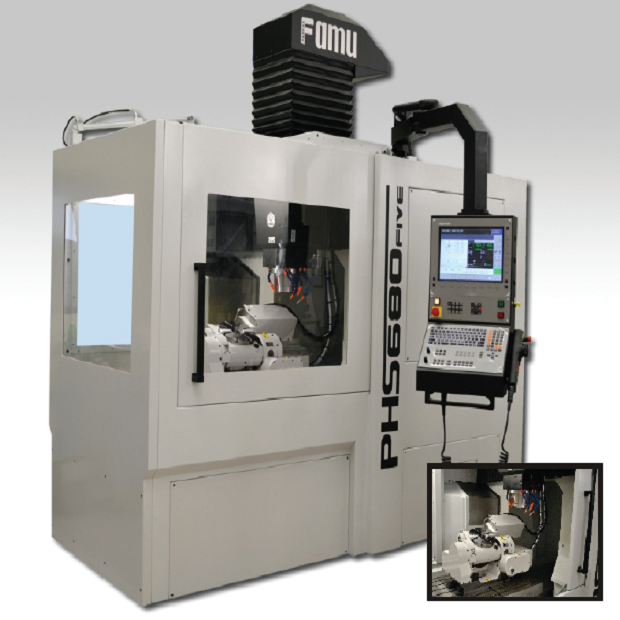

PHS 680

	PHS 680FIVE
Longitudinal Travel	800 mm
Cross Travel	600 mm
Vertical Travel	450 mm
Feeds	0 - 40000 mm/1`
Brushless AC spindle motor	7 - 20 kw

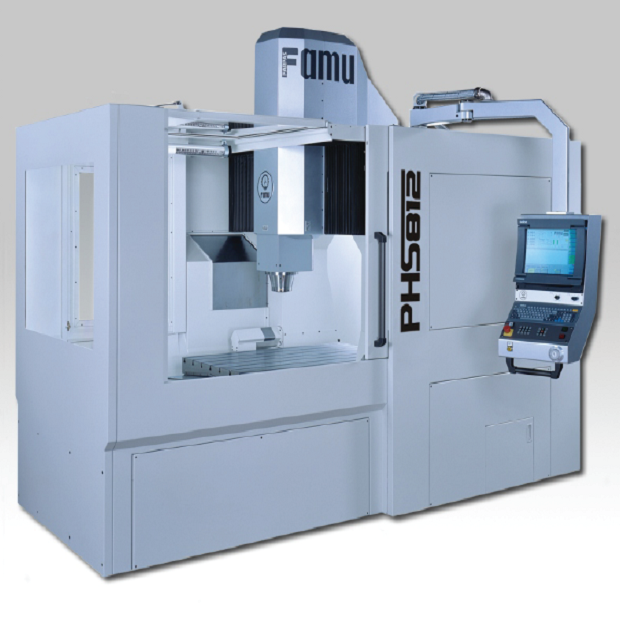

PHS

	PHS
Longitudinal Travel	800 • 1200 • 1600 mm
Cross Travel	600 • 800 • 900 mm
Vertical Travel	450 - 700 mm
Feeds	0 - 40000 mm/1`
Brushless AC spindle motor	17 - 38 kw
