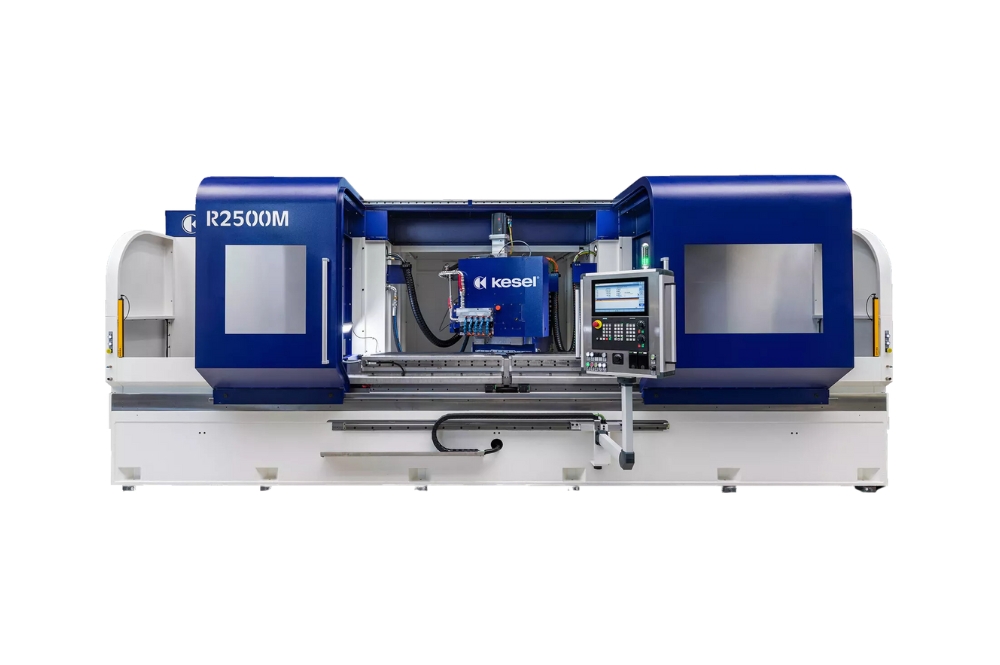

The Gear Rack and Profile Milling Machines of the Kesel R-Series aren’t just updated versions of our previous models, they are completely new rack milling platforms. With a brand new bed and slide construction, a world-first, twin-table system, a completely new milling head and the possibility to fully automate loading and unloading of parts; the R-Series really is a true game changer.

Available in four size variations from the R2500M up to the R5500M and fitted with either our powerful F1-HSK or more compact F2-SK milling head, there is a configuration to fit every application. The R-Series machines are capable of milling up to module 32 on work pieces with a maximum length of 5,500 mm. Built with the latest 840Dsl operating system from Siemens the R-Series is equipped for the challenges of today and tomorrow.

Contact us

Technical Specification

Milling Head Type F2-SK
Power 43 kW S6 40 %
RPM Max. 315 rpm
Max. Tool Width 200 mm
Milling Arbor SK 50
Alternate Milling Head Type F1-HSK, transmission with high power drive
Power 45kW S6 40%
RPM max. 450 rpm, infinitely variable
Max. Tool Width 250 mm
Milling Arbor HSK-125B
Travel Ranges X-axis (horizontal / table) Single table setup from 2,940 mm up to 5.940 mm X2T twin-table system from ± 800 mm up to ± 2,300 mm per table
Y-axis (vertical / depth) 250 mm
Z-axis (traverse / infeed) 620 mm
B-axis (rotation / helix) +/- 25°
Control Siemens SINUMERIK 840D sl
Clamping Clamping System Magnetic, hydraulic or hybrid options available
Clamping Range Single table setup from 2,500 up to 5,500 x 400 mm, X2T twin-table system from 2 x 1,250 up to 2 x 2,750 x 400 mm
Dimensions and Weight Installation dimensions (L x W x H) R2500M : 8,600 x 4,300 x 2,700mm R3500M: 9,600 x 4,300 x 2,700mm R4500M: 11,200 x 4,300 x 2,700mm R5500M: 13,600 x 4,300 x 2,700mm
Machine weight R2500M ≈ 26 t R3500M ≈ 29 t R4500M ≈ 32 t R5500M ≈ 35 t
Options X2T twin-table system
Controlled B-axis
Milling cutter changing device
SW3K chip vacuum system
- Automated loading and unloading
...And much more!

Key Features

  • The brand new F1-HSK milling head packs more power and performance than ever before!
  • The X2T twin-table setup will allow you to achieve unbelievable productivity.
  • Fully automate your loading and unloading process with our latest robotic cell.

The R Series from Kesel. Rack and Profile Milling Machine.

The machines of the Kesel R-Series aren’t just updated versions of our previous models, they are completely new rack milling platforms. With a brand new bed and slide construction, a world-first, twin-table system, a completely new milling head and the possibility to fully automate loading and unloading of parts; the R-Series really is a true game changer.
