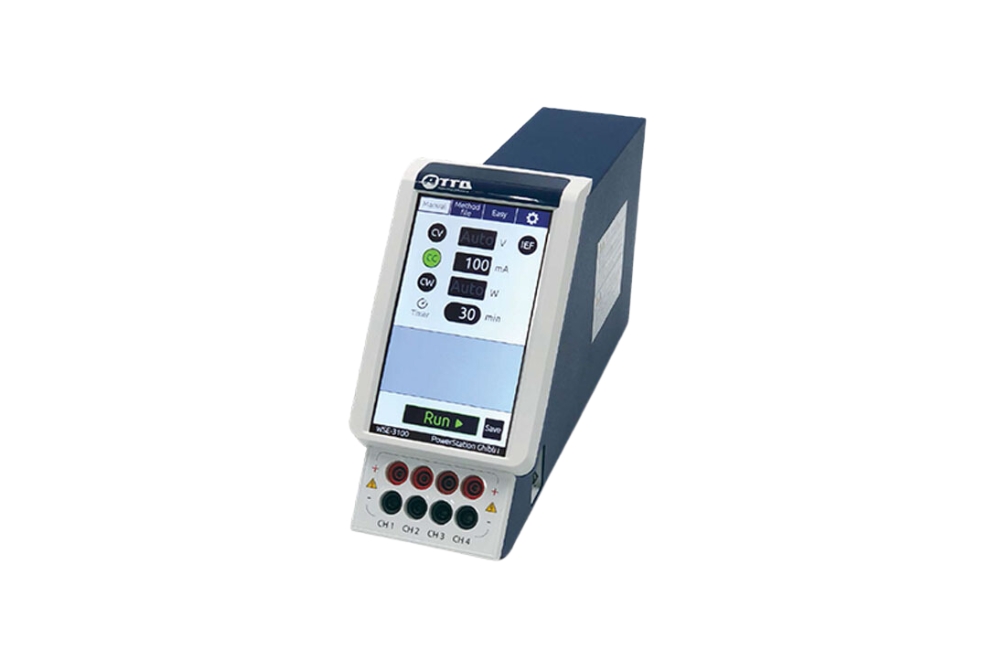

WSE-3100
The World's first Touch panel control Power supply! Big color screen is adopted for showing simple control function.

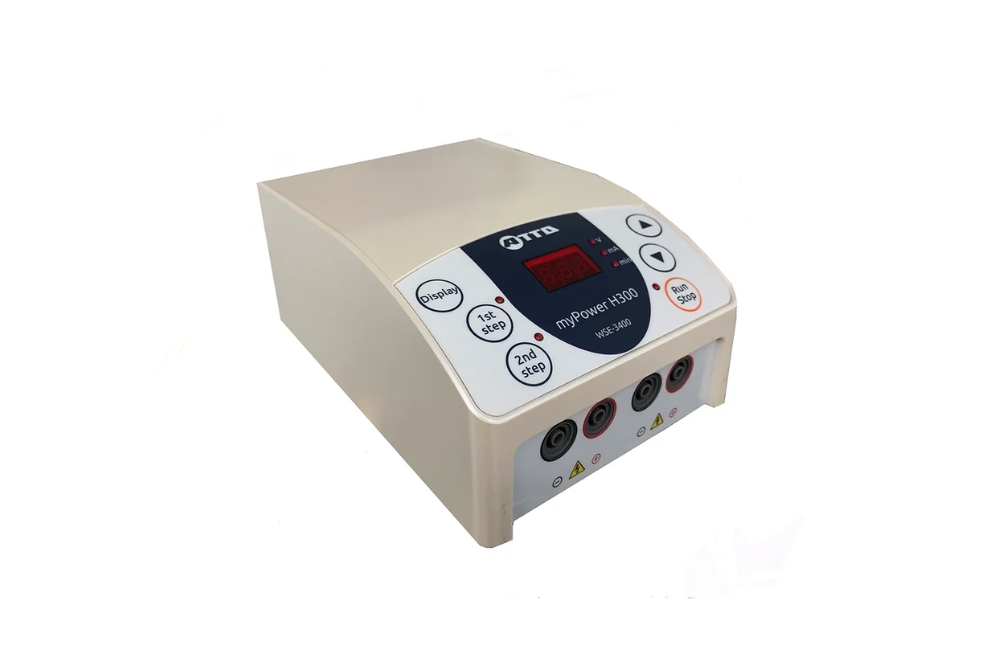

WSE-3400
Compact Horizontal type power supply 140mm(W) x 85mm(H) x 190mm(D) compact and lightweight power supply for Electrophoresis / Western blotting use.

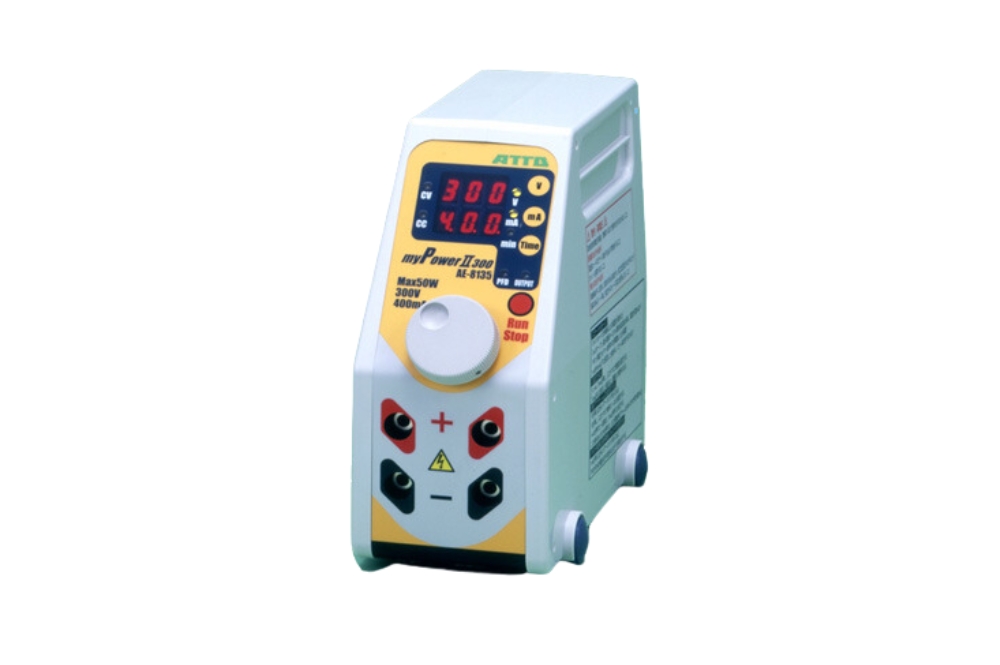

AE-8135
For agarose electrophoresis (DNA elec- trophoresis), semi-dry blotting (Western blotting of protein) and so on!
Technical Specifications
|
| |
---|---|---|
Setting
|
Voltage 3-500V Current 10-3000mA Power 1-200W
| |
Output range
|
Voltage 0-500V Current 0-3000mA Power 0-200W
| |
Timer
|
1-999min, Timer ON/OFF
| |
Display/operation
|
7 inch color screen touch panel
| |
Operation
|
Constant current,Constant voltage,Constant Power
Manual mode, Method file mode, Easy mode,
20 files available, 9 steps/file
| |
Safety
|
Detection of error
(open circuit, short circuit, sudden load variation etc.), Alrarm
| |
Other functions
|
Pause, Graph display, Power fail recovery ON/OFF
| |
Input
|
AC100-240V, 50/60Hz
| |
Dimentions/Weight
|
119(W)x417(D)x224(H)mm/ 6kg
| |
View the entire technical specifications in the brochure. |
Electrophoresis
Blotting
Visit the brochure to find out more about the application.
Simple Operation with a Large Touch Color Screen
Comprehensive Display
Wide Output Range
Simple Operation Modes
Additional Functions
Technical Specifications
|
| |
---|---|---|
Function
|
Constant voltage or constant current with automatic crossover
| |
Setting
|
Voltage: 10 - 300 V in 1 V steps
Current: 10 - 400 mA in 1 mA steps
| |
Output
|
Voltage: 10 - 300 V (Max. 60W)
Current: 10 - 400 mA (Max. 60W)
Wattage: Maximum 60 W
| |
Timer
|
1 to 999 minutes setting in 1 minute steps with alarm or continuous
| |
Program
|
2-step program
| |
Display
|
3-digit LED displays voltage, current, or time
| |
Meter accuracy
|
1% FS ‡ 1 digit or better
| |
Safety protection
|
No load detection; shrouded plugs and sockets
| |
Power outlet
|
2 pairs in parallel
| |
Power requirement
|
AC 100 - 240 V 50/60 Hz 2A
| |
Dimension
|
140 (W) x 191 (D) x 84 (H) mm
| |
Weight
|
1 kg (main body)
| |
Component
|
Main body 1 ea, AC cable 1 ea
| |
View the entire technical specifications in the brochure. |
Visit the brochure to find out more about the application.
Technical Specifications
|
| |
---|---|---|
Control
|
Constant Voltage/Constant Current/Crossover
| |
Setting
|
Voltage: 10 - 300 V in 1 V steps
Current: 10 - 400 mA in 1 mA steps
| |
Output
|
Voltage: 1 - 300 V (Max. 50W)
Current: 1 - 400 mA (Max. 50W)
| |
Display accuracy
|
Voltage/Current:within the range of ±(1%FS±1digit)
| |
Timer
|
1-999min (equivalent to about 16.6 hours), 0min continuous output, 1min step, Countup
| |
Alarm
|
Selection of alarm presence/absence at the start of output,
Selectable alarm or melody at the end of output (Alarm x7, Melody x13 types)
| |
Safety mechanism
|
Short circuit detection (Err1)/ Open detection (Err2) Automatic output stop, Warning alarm
| |
Blackout Protection
|
1% FS ‡ 1 digit or better
| |
Output terminal
|
2 pairs in parallel
| |
Input power
|
Voltage: AC100-115V(AC200-230V) Frequency: 50/60Hz
| |
Consumption
|
70W
| |
Dimension/ Weight
|
74(W)×170(D)×170(H)mm / 0.74kg(Main body)
| |
View the entire technical specifications in the brochure. |
