Claind - Nitrogen Generator - NiGen LCMS

Available models

Technical Specifications

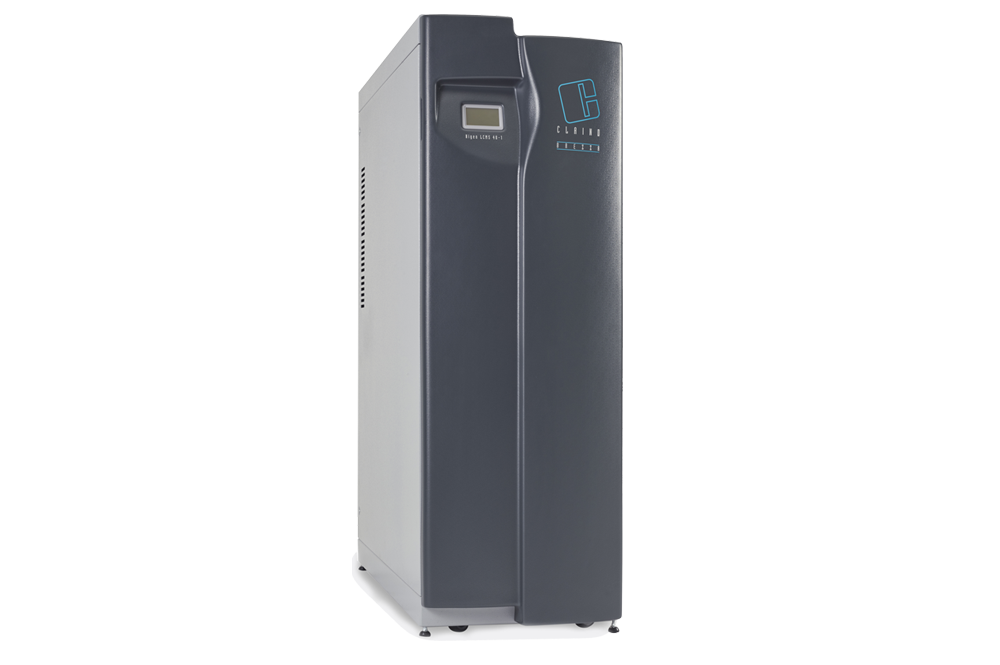

Flow Rate	NiGen LCMS 40-1 : 38 Nl/min ± 10% a 2000 m asl
Technologies Employ	PSA CLAIND
Output Pressure	0 - 7 bar/0 - 100 psi ± 3%
Purity	up to 99.9%
Compressor	Only in the version 40-1
Air Input Characteristics	Particulate ≤ 0,01 µm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point min pressure: 8.5 bar/120 psi max pressure: 10 bar/145 psi
Electrical Supply X Lcms 40-1	115 Vac ± 10% 60 Hz 1,9 kW 230 Vac ± 10% 50 Hz 1,6 kW
Index Of Protection	IP20
Noise	< 50 dBA during the stand by of the compressor < 65 dBA with compressor running
Operating Temperature	5°C fino 35°C (41°F fino 95°F)
Environmental Humidity	max 90% without condensation
Dimensions	Height: 132 cm/52” Width: 44 cm/17.3” Depth: 110 cm/43.3”
Weight	220 kg/489 lbs
Pneumatic Connections	Compressed air inlet: G 1/4” female Nitrogen output: G 1/4” female

Designed to satisfy the needs of all LCMS analyzers on the market
The PSA technology with molecular sieves, used in the NiGen series, are drastically reducing the O2 and H2O residual but also the HC presence in the air, offering an extremelly pure nitrogen output (phthalate-free)
Highly reliabile Air compressor with maintenance required only after 14,000 hours of work
Able to supply up to 4 LC-MS analysers
40-1 version with special built-in full oil-free compressor
The 50 lt each of air and nitrogen internal storage tanks mean less frequent air compressor starts, hereby reducing noise levels and maintenance
CPU with Touch Screen Display allows the monitoring of operational status and menus with report alarms and functioning parameters

Technical Specifications

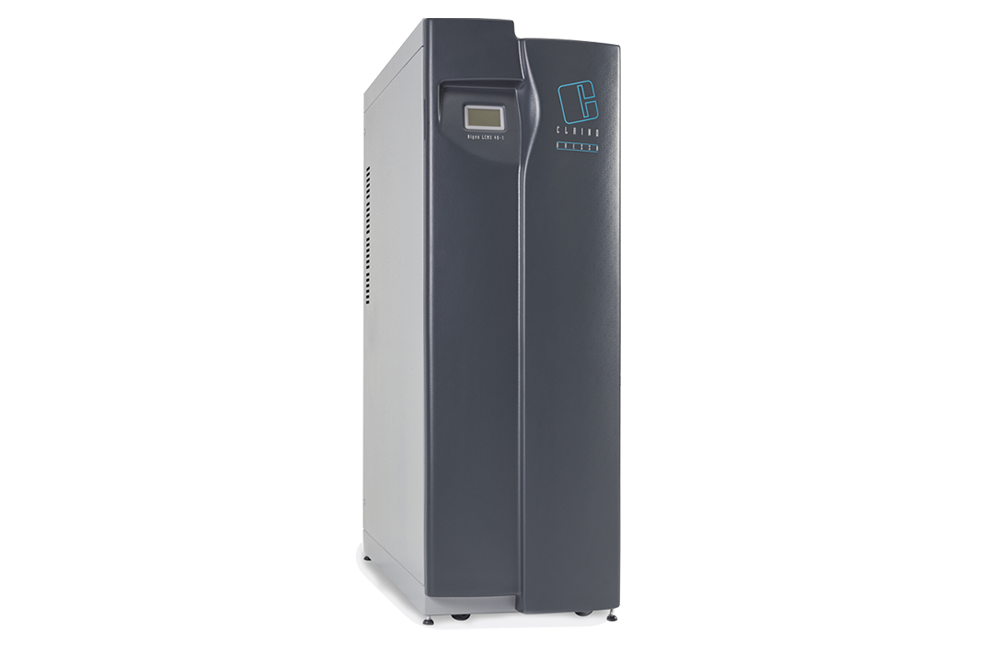

Flow Rate	NiGen LCMS 100 : 100 Nl/min ± 10% a 2000 m asl
Technologies Employ	PSA CLAIND
Output Pressure	0 - 7 bar/0 - 100 psi ± 3%
Purity	up to 99.9%
Compressor	Only in the version 40-1
Air Input Characteristics	Particulate ≤ 0,01 µm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point min pressure: 8.5 bar/120 psi max pressure: 10 bar/145 psi
Electrical Supply X Lcms 100	115/230 Vac ± 10% 60/50 Hz 50 W
Index Of Protection	IP20
Noise	< 50 dBA during the stand by of the compressor < 65 dBA with compressor running
Operating Temperature	5°C fino 35°C (41°F fino 95°F)
Environmental Humidity	max 90% without condensation
Dimensions	Height: 132 cm/52” Width: 44 cm/17.3” Depth: 110 cm/43.3”
Weight	200 kg/444 lbs
Pneumatic Connections	Compressed air inlet: G 1/4” female Nitrogen output: G 1/4” female

Designed to satisfy the needs of all LCMS analyzers on the market
The PSA technology with molecular sieves, used in the NiGen series, are drastically reducing the O2 and H2O residual but also the HC presence in the air, offering an extremelly pure nitrogen output (phthalate-free)
Highly reliabile Air compressor with maintenance required only after 14,000 hours of work
Able to supply up to 4 LC-MS analysers
The 50 lt each of air and nitrogen internal storage tanks mean less frequent air compressor starts, hereby reducing noise levels and maintenance
CPU with Touch Screen Display allows the monitoring of operational status and menus with report alarms and functioning parameters
