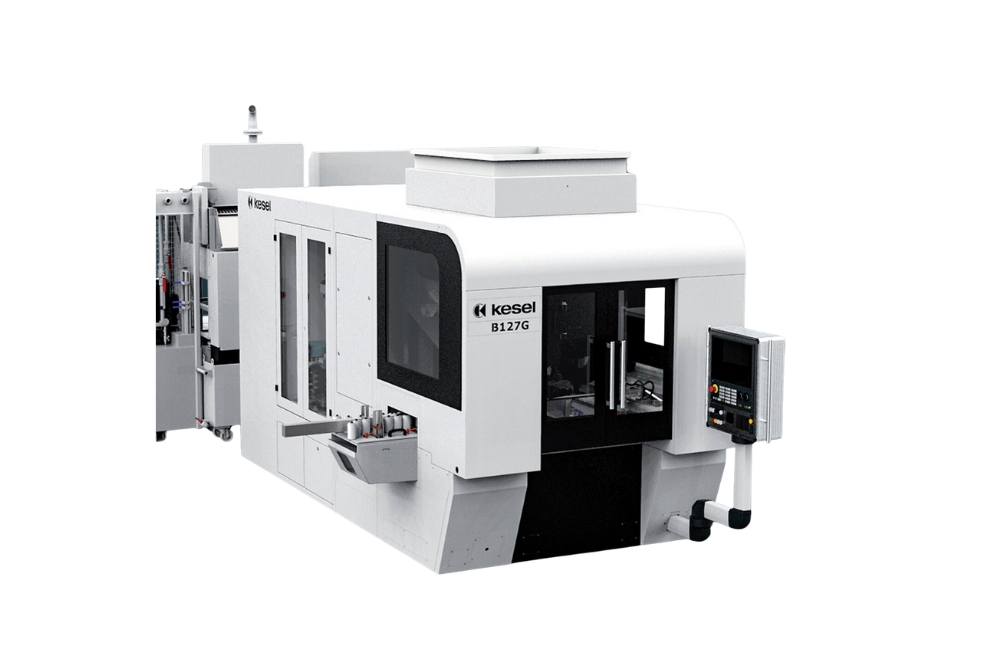

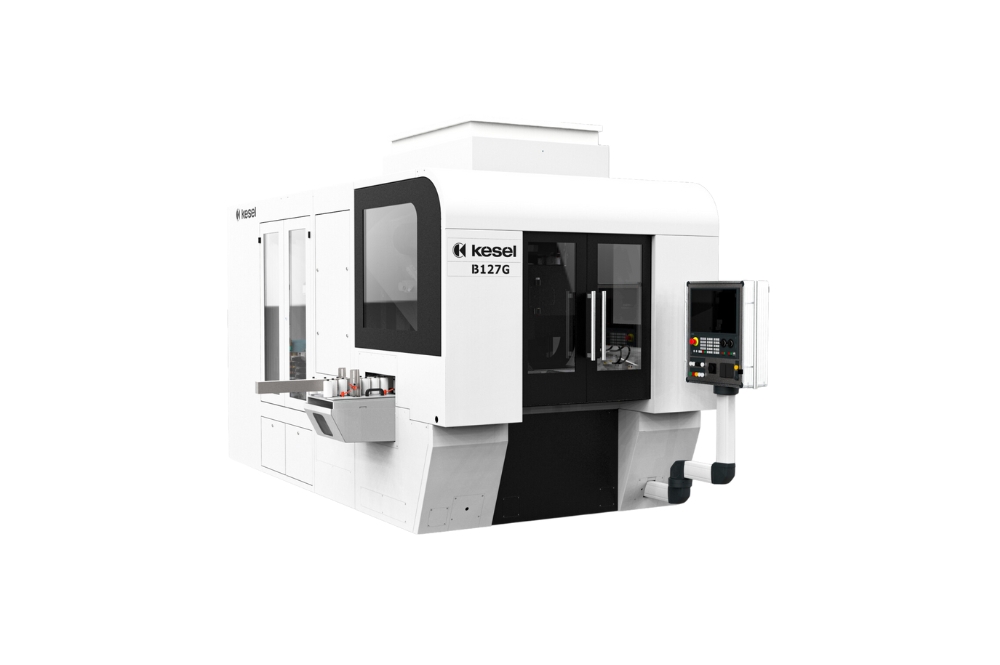

Georg Kesel - Bandsaw Blade Grinding Machine - B127G

• Tool widths up to 310 mm for unbeatable productivity.
• Huge 60 mm clamping width.
• State-of-the-art operating system delivers ultimate connectivity.

The band feed system of the B127G has been updated significantly to increase speed of use and dramatically reduce material wastage. Re-designed roller guides and a pneumatic band packet holder ensure band changeovers are completed quickly and effectively.

The zero-loss feed system, a standard feature of the B127G, ensures that grinding begins from the very first millimetre of band material. For organisations conscious of their carbon footprint, the B127G goes a long way to supporting more responsible manufacturing.

Total flexibility and precision. Our standard single axis-dressing unit allows splitsecond wheel profiling with total control over all the critical performance parameters. Alternatively, the GP2 system allows single and 2-axes dressing, providing an invaluable, additional capability.

The B127G runs on the SINUMERIK ONE system from Siemens, a multicore architecture comprising of state-of-theart microprocessors. The result? Maximum speed combined with fluid CNC operation, even in high-load scenarios. Implementation of the SIMATIC S7-1500 PLC reduces non-productive times at the machine and offers the best conditions for integrating the B127G into higher-level automated systems.

The intelligent coolant management system supplied with the B127G is fully automated to increase operation efficiency. Coolant volumes and pressures are continually monitored and maintained via the coolant unit’s control system which is fully integrated into the grinding machine’s operating architecture. More complex coolant applications, such as volume and pressure changes during roughing and finish grinding can be easily programmed.
