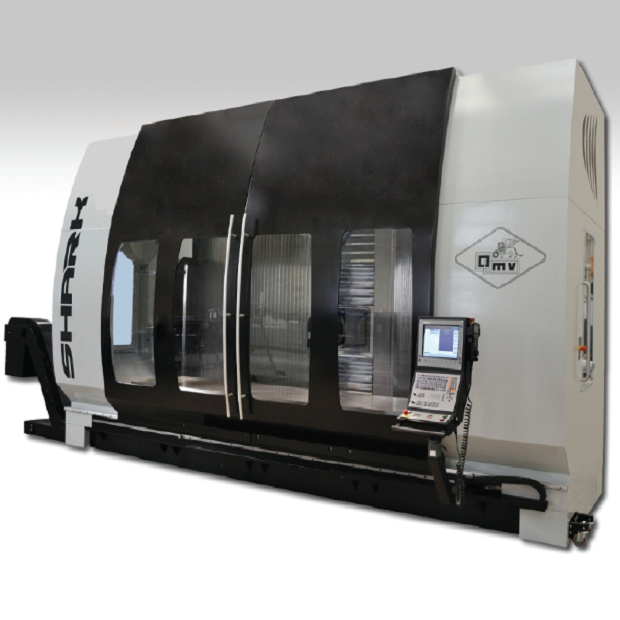

SHARK is a high speed machining centre line with a fixed bed and a movable column. Being designed by means of the calculation of finite elements for machine structures (FEM), the machine represents an optimised development assuring rigidity and vibration dumping during movements. In addition to that low friction rates and high axes acceleration values are important features which allow high dynamical performances in finishing and at the same time in roughing: a big advantage in reducing production costs during machining process.
TMI:Head with 2 index axes every 2.5 °.Completely cooled with the field of the spindle speed up to 7000 rpm
TMT:Head-to-2-axis of new conception driven by torque motors withcontinuous and contemporary positioning (0.001°) to minimize the times of the working cycle. Completely cooled with the field of the spindle speed up to 7000 rpm
|Longitudinal Travel||2000 - 5000 mm||2000 - 5000 mm|
|Cross Travel||1050 • 1200 mm||1050 mm|
|Vertical Travel||1200 • 1600 • 2100 mm||1200 mm|
|Feeds||0 - 40000 mm/1'||0 -20000 • 0 - 40000 mm/1'|
|0 - 30000 mm/1'|
|Brushless AC spindle motor||22 - 45 Kw||22 Kw|
High-speed milling machine with mobile column and high dynamics that offer innovative solutions and state-of-the-art performances.
The machine structures are engineered with the aid of powerful calculation and analysis software.
In order to provide a high dynamic control for the machine, its structures are built using steel alloys that offer higher rigidity, on an equal mass basis, compared to conventional materials such as cast iron. The result is a machine that combines high precision and rigidity together with outstanding dynamics performances.
Every machine structure undergoes a stress relief heat treatment that helps eliminating the tensions deriving from manufacturing processes.
The linear guide ways, on which roller runner blocks glide, are generously dimensioned and anchored directly to the structure.
