IKA - Hot Plates

IKA hotplates allow for precise and safe heating and tempering due to a platform made from glass ceramics that ensures the best possible chemical resistance. The universal lab hotplates offer a high level of safety due to a fixed safety circuit, the Hot Top Indicator, and the error code display. An electronic contact thermometer may be connected for highly precise temperature control. Functionality, safety, and longevity are the main goals in the development of IKA hotplates.

Available models

Technical specifications
Heat output
250 W
Heating temperature range
50 ~ 500 °C
Heat control
LED
Set temperature resolution
10 ±K
Volume max.
5 l
Heating rate heating plate
2.5 K/min
Set-up plate material
ceramic
Set-up plate dimensions
100 x 100 mm
Dimensions (W x H x D)
150 x 105 x 260 mm
Weight
2.44 kg
  • Fixed safety circuit of 550 °C
  • Hot Top indicator: hot surface warning to prevent burns
  • Exact temperature setting via digital display (LED)
  • Digital error code display
  • Elevated control panel for protection against leaking liquids
Technical specifications
Heat output
1000 W
Heating temperature range
50 ~ 500 °C
Heat control
LED
Connection for ext. temperature sensor
ETS-D5
Volume max.
10 l
Heating rate heating plate
5 K/min
Set-up plate material
ceramic
Set-up plate dimensions
180 x 180 mm
Dimensions (W x H x D)
220 x 105 x 330 mm
Weight
4.4 kg
  • Fixed safety circuit of 550 °C
  • Hot Top indicator: hot surface warning to prevent burns!!
  • Exact temperature setting via digital display (LED)
  • Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
  • Digital error code display
  • Elevated control panel for protection against leaking liquids

Hot Plates

IKAIKA is where people turn visions into reality. When the corporate history of IKA began in 1910, China had not yet become a People's Republic and the word "globalization" had not been invented yet. Today, the IKA group has over 900 employees at 10 locations on four continents and is proud to serve customers such as BASF, Bayer or Procter&Gamble. We are the leader in the world market in most of the product groups and a leading example for development and growth. Or as our new slogan expresses it: „IKA-Designed to work perfectly“.

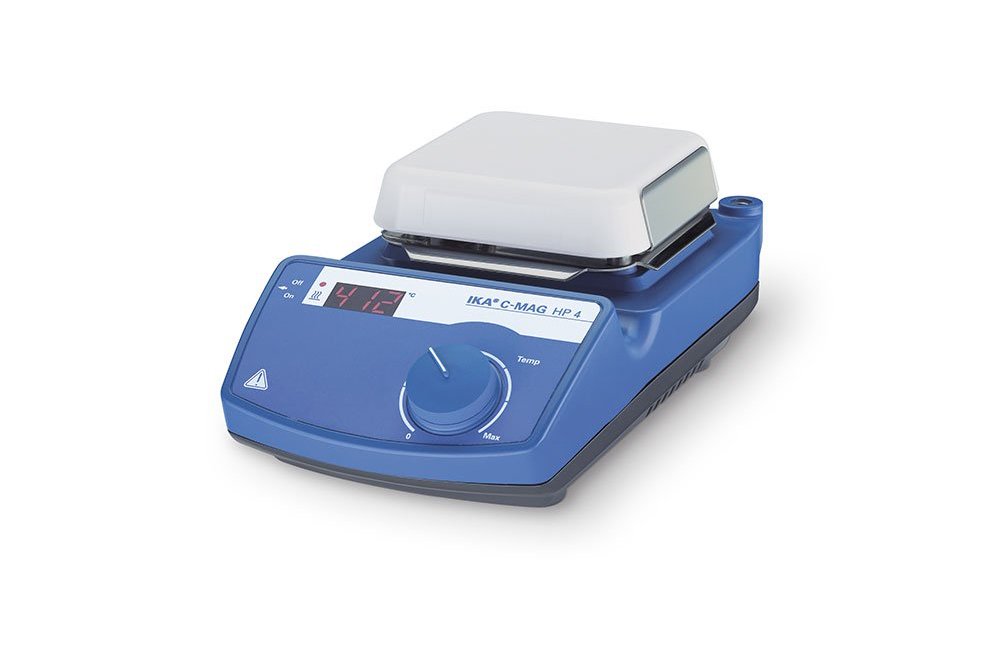

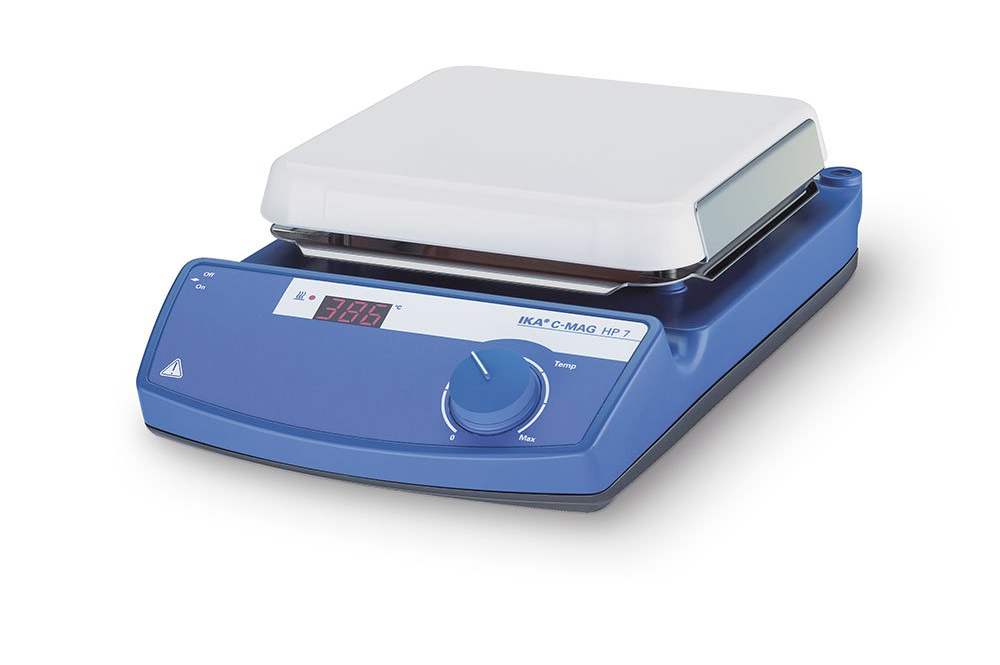

[Hot Plates, C-MAG HP 7, C-MAG HP 4]
