IKA - Viscometers

The new ROTAVISC series determines the viscosity of liquids in all areas of application ranging from the laboratory to quality control. The four devices measure in different viscosity ranges. Regardless of a simple or demanding viscosity measurement - the ROTAVISC delivers rapid and accurate results. The scope of delivery includes a standard spindle set ( SP7- SP12), a protective bracket, temperature sensor, quick connector, hook connector and ROTASTAND stand.

Available models

Technical specifications
Viscosity Measuring Range
80000000 mPas
Viscosity Accuracy (FSR)
1 %
Viscosity Repeatibility (FSR)
0.2 %
Spring torque
1.4374 mNm
Working temperature
-100 ~ 300 °C
Dynamic load
5 kg
Dimensions (W x H x D)
351 x 629 x 372 mm
Weight
7.1 kg
Voltage
100 - 240 V

Easy to operate

The generous 4.3″ TFT display allows for an intuitive menu guidance. A digital spirit level also supports the correct set-up of the start-up condition. The simple ramp function simplifies repetitive tasks.

Highest measurement accuracy

The level of measurement accuracy of the ROTAVISC rotational viscometer for both Newtonian and non-Newtonian fluids is +/- 1 % of the measuring range. The reproducibility is +/- 0.2 %.

Stepless speed

ROTAVISC is a viscometer, which offers stepless speed adjustment.

Technical specifications
Viscosity Measuring Range
6000000 mPas
Viscosity Accuracy (FSR)
1 %
Viscosity Repeatibility (FSR)
0.2 %
Spring torque
0.0673 mNm
Working temperature
-100 - 300 °C
Dynamic load
5 kg
Dimensions (W x H x D)
351 x 629 x 372 mm
Weight
7.1 kg
Voltage
100 - 240 V

Easy to operate

The generous 4.3″ TFT display allows for an intuitive menu guidance. A digital spirit level also supports the correct set-up of the start-up condition. The simple ramp function simplifies repetitive tasks.

Highest measurement accuracy

The level of measurement accuracy of the ROTAVISC rotational viscometer for both Newtonian and non-Newtonian fluids is +/- 1 % of the measuring range. The reproducibility is +/- 0.2 %.

Stepless speed

ROTAVISC is a viscometer, which offers stepless speed adjustment.

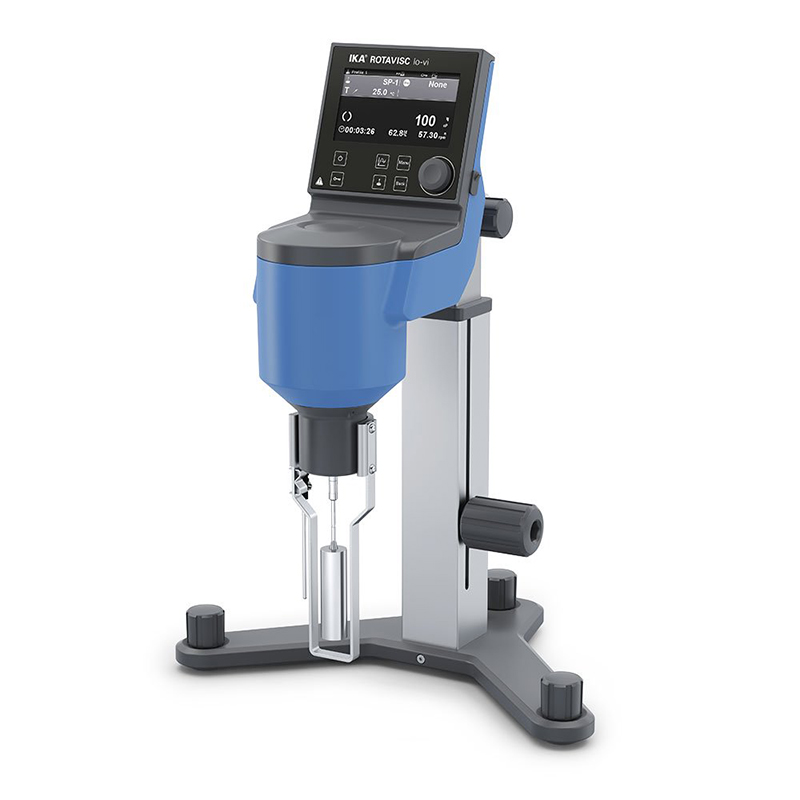

IKA Rotavisc lo-vi Complete

Viscosity measuring range: 1 - 6,000,000 mPas

Technical specifications
Viscosity Accuracy (FSR)
1 %
Viscosity Repeatibility (FSR)
0.2 %
Spring torque
0.7187 mNm
Working temperature
-100 ~ 300 °C
Dynamic load
5 kg
Dimensions (W x H x D)
351 x 629 x 372 mm
Weight
7.1 kg
Voltage
100 ~ 240 V

Easy to operate

The generous 4.3″ TFT display allows for an intuitive menu guidance. A digital spirit level also supports the correct set-up of the start-up condition. The simple ramp function simplifies repetitive tasks.

Highest measurement accuracy

The level of measurement accuracy of the ROTAVISC rotational viscometer for both Newtonian and non-Newtonian fluids is +/- 1 % of the measuring range. The reproducibility is +/- 0.2 %.

Stepless speed

ROTAVISC is a viscometer, which offers stepless speed adjustment.

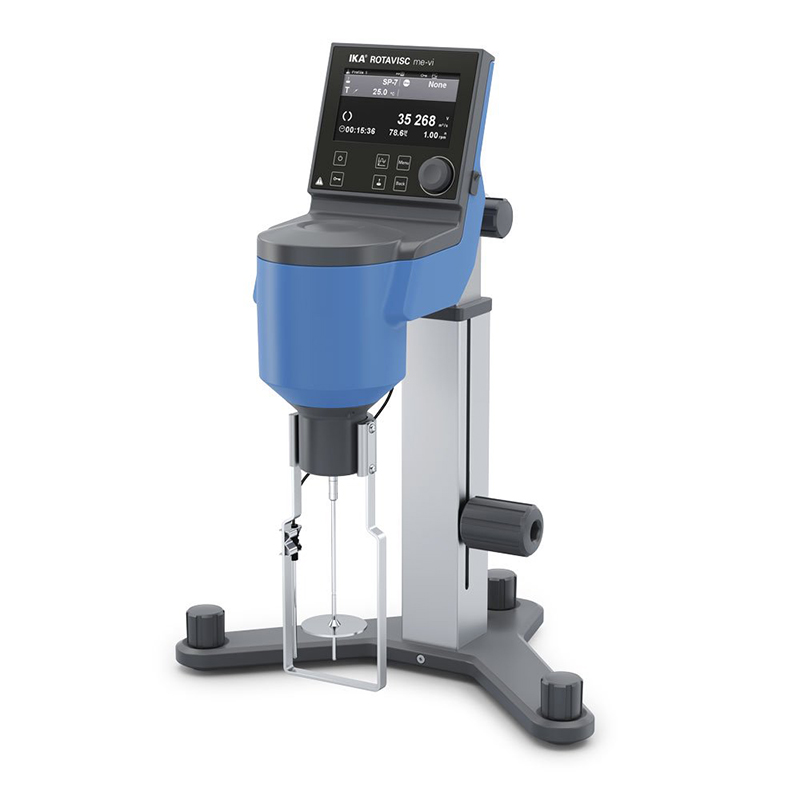

IKA Rotavisc me-vi Complete

Viscosity measuring range: 100 - 40.000.000 mPas
