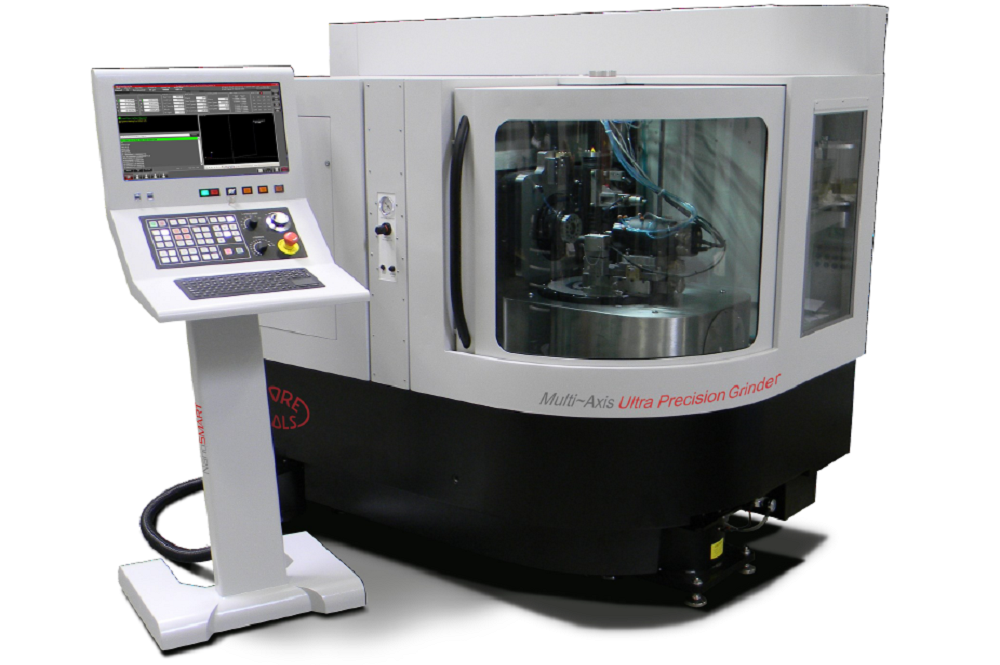

Nanotech 100UPGv1

Ultra-Precision Aspheric Grinding System.

The Nanotech 100UPGv1 is an aspheric ultra-precision grinding system specifically engineered for grinding of Tungsten Carbide and Silicon Carbide aspheric optical mold inserts used in glass press molding as well as grinding of aspheric glass lenses. It is also suitable for single point diamond turning of symmetric optical components. The system is available in either a XZ or XZB configuration. It provides a 100mm diameter swing capacity for grinding applications and a 250mm diameter capacity for diamond turning.

Product advantage

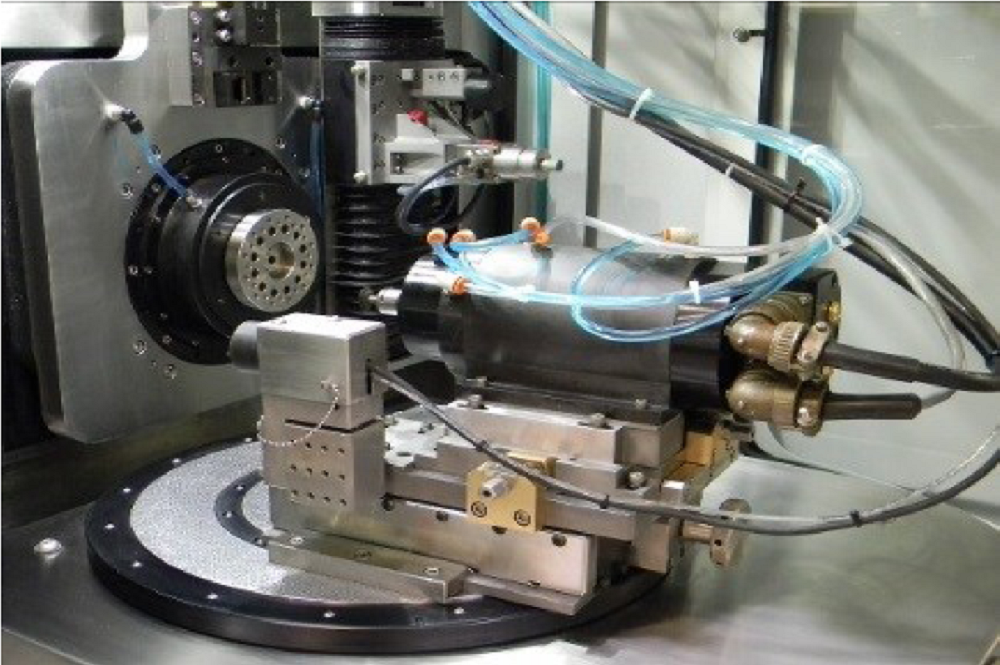

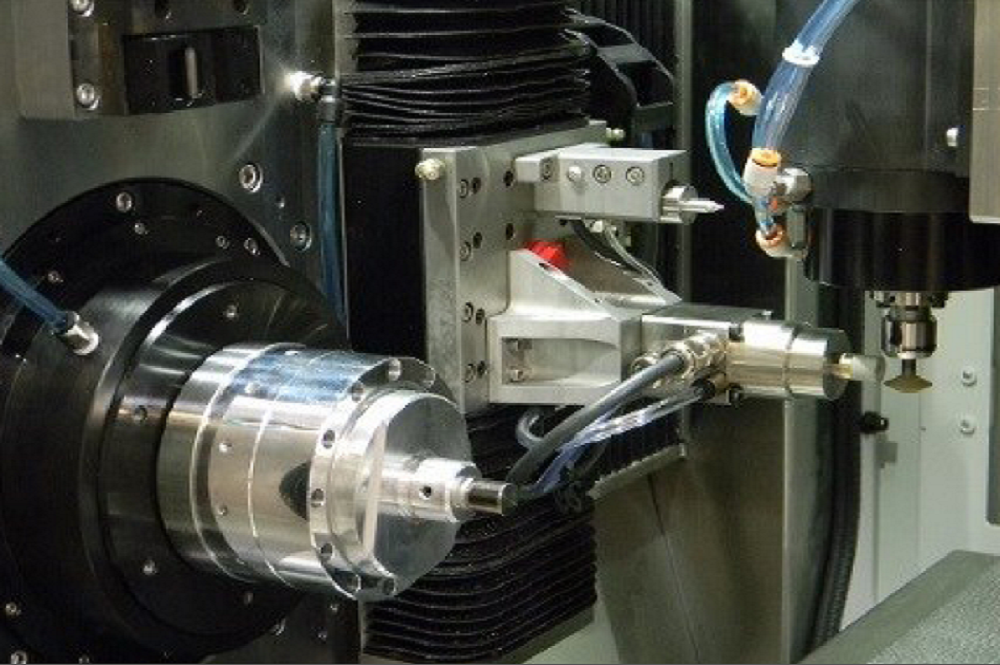

The machine was developed with the latest "precision engineered" designs and components, including high stiffness hydrostatic oil bearing slide ways, state-of-the-art linear motor drives with sinusoidal drive amplifiers, on-machine CNC controlled wheel dressing and metrology measurement, an exclusive 10,000 rpm heavy-duty groove compensated air bearing work spindle and a 5,000-45,000 rpm air bearing grinding spindle both with liquid cooling for long term thermal stability. The machine’s enclosure has been engineered for total flood containment with a smooth gliding curved door for easy and complete access to the work area. Due to the high overall loop stiffness and exceptional quality and technical performance of all major components used on the Nanotech 100UPGv1, this equipment has been optimized to provide superb grinding performance. The optional Heavy Duty Oil Hydrostatic B-axis allows simple expansion of the basic two axis system to 3 axes of continuous path motion.

Product description

The 100UPG^v1 combines many new advanced precision engineered components including our new PowerNC™ Windows 7 based HMI Controller, compact utilities cabinet with integrated hydraulic and pnuematic systems and an industry leading 8.4 picometer feedback resolution. The new PowerNC™ Controller with 22” wide screen format includes our industry’s first Touch/Swipe gesture interaction. It also features numerous added capabilities for highly efficient programming and overall machine operation at superior processing speeds over previous control systems in the industry.

Technical specifications

General	Description
System Configuration	Ultra-Precision two, three or four axis CNC aspheric grinding system
Workpiece Capacity	100mm dia. in either XZ or XZB configuration (Grinding); 250mm dia. (Diamond Turning)
Base Structure	Monolithic composite polymer granite with integral coolant troughs
Vibration Isolation	3 point optimally located shear damped air isolation system with self-leveling
Control System	Delta Tau 1GHz PowerPMAC Embedded Real-time 64-bit Linux Motion Controller with Nanotech’s NEW Windows 7 based HMI with a Touch / Swipe Gesture Interactive display.

Workholding Spindle	Heavy Duty (Standard)
Type	Exclusive HD impact resistant graphite air bearing with center mounted thrust face
Speed Range	50 to 10,000 rpm, bi-directional (Speeds over 2,000 rpm require liquid cooling option)
Swing Capacity	Up to 100mm diameter with XZ or XZB grinding configuration - Up to 250mm diameter diamond turning configuration
Working Load Capacity (Radial)	85 Kg @ 7bar (185 lbs @ 100psi.) / 102 Kg @ 10bar (225 lbs @ 145psi.) @ spindle nose
Working Load Capacity (Axial)	197 Kg @ 7bar (435 lbs @ 100psi.) @ spindle nose
Axial Stiffness	228 N/m @ 7bar (1,300,000 lbs/in @ 100psi) / 260 N/m @ 10bar (1,500,000 lbs/in @ 145psi)
Radial Stiffness (@ spindle nose)	98 N/m @ 7bar (560,000 lbs/in @ 100psi) / 140 N/m @ 10bar (800,000 lbs/in @ 145psi)
	*For more data, please contact us

Key features

V1 Series New Major Technology Advancements

· Impact Resistant Porous Graphite Air Bearing Work Spindle with less than 12.5nm motion error throughout entire speed range and 0.01 arc second C-axis resolution.

· Industry leading 8 picometer linear feedback resolution.

· Delta Tau Power PMAC Real-time 64-bit Motion Controller with 40,000 block lookahead for advanced trajectory calculations.

· Dedicated Ethernet / LAN connection allows real-time monitoring and control of the machine by the factory (or the customer) to remotely evaluate all control functions for instantaneous diagnosis and troubleshooting of any control or programming problems.

· NanoSMART ™ - Industry’s First Touch / Swipe Gesture Based Interactive HMI with numerous new value added features including ability to process up to 5GB program file sizes.
