The specialist for field duty and much more.

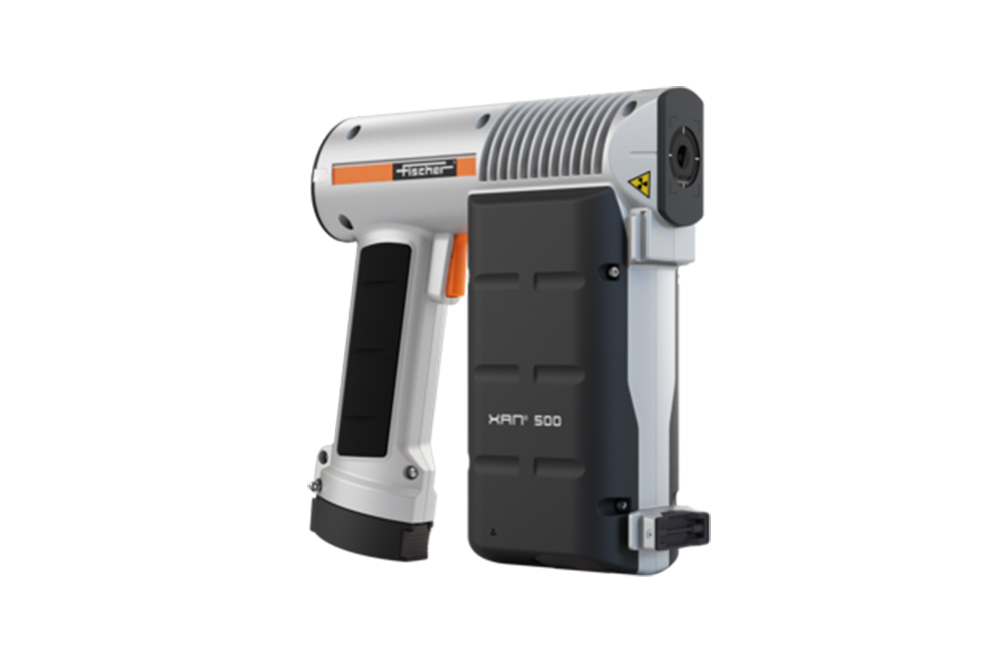

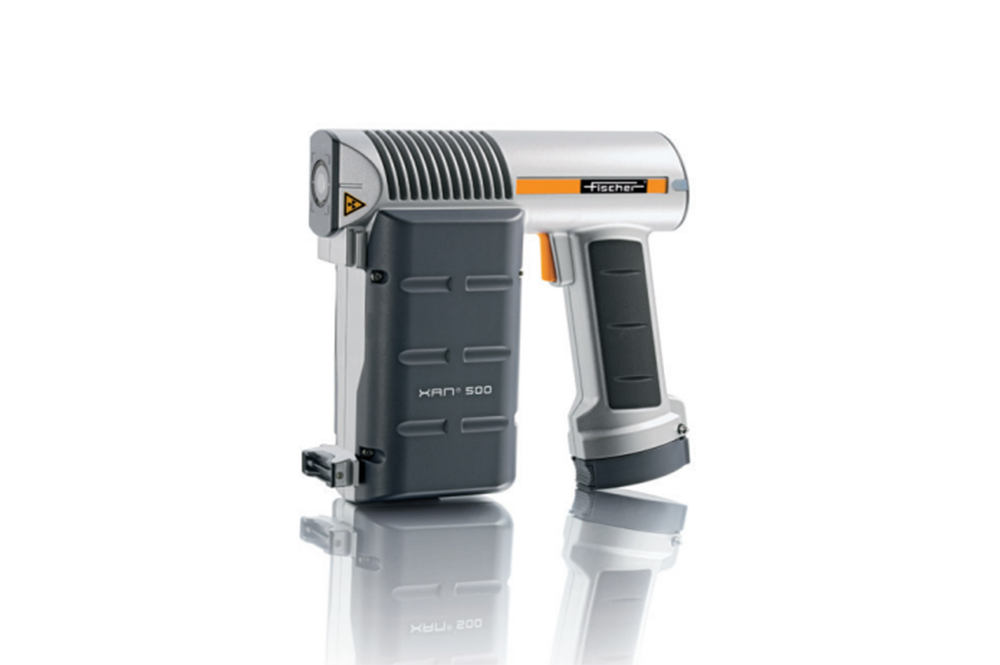

The FISCHERSCOPE® X-RAY XAN® 500 is the most versatile X-ray fluorescence (XRF) system available. As a handheld XRF analyzer, it’s perfect for inspecting coatings on bulky items like airplane parts, pipes or turbine blades in a running production line.

In contrast to other portable XRF devices on the market, the FISCHERSCOPE XAN 500 determines coating thickness very precisely. Its 3-point support makes it easy to place correctly and keeps it stable during the entire measurement. A high-quality silicon drift detector (SDD) ensures the precision needed to analyze alloy layers such as zinc-nickel.

Applications

Testing on bulky objects and, with the measuring box, also small parts
Simultaneous determination of both the thickness and the composition of a layer in a single measurement (e.g. ZnNi on Fe)
Standard-free measurement of unknown alloys
Measurements on large, coated parts such as machine components and housings
Testing of galvanic layers
Analysis of the metal content of electroplating baths

Key Features

XAN 500

Universal handheld XRF analyzer for precise coating thickness measurement and material analysis – even with difficult material combinations; complies with DIN ISO 3497 and ASTM B 568
Weight 1.9 kg
One battery charge lasts for up to 6 hours of operation
Measurement spot: 3 mm Ø
High-resolution silicon drift detector
Rated IP54 for outdoor use

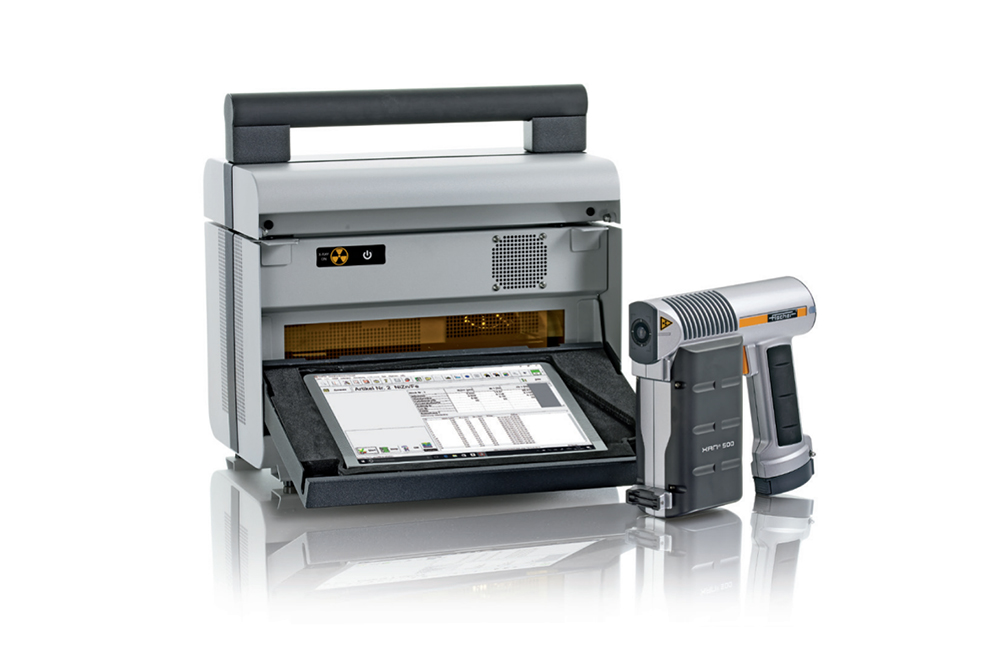

Optional measuring box for use as a XRF bench-top device
Data evaluation with the full version of WinFTM® software

Portable & mobile XRF Measuring Instrument for Fast and Non-Destructive Analysis | X-RAY XAN 500

FISCHERSCOPE® X-RAY XAN® 500 - One instrument, three job descriptions! Handheld, desktop, inline: the XAN®500 X-ray fluorescence instrument is Fischer’s most versatile yet. It can be used as a handheld device, as a fully enclosed desktop unit or integrated directly into production lines.

X-RAY XAN 500 Tutorial Part 1: Introduction | Portable X-ray Fluorescence Gauge | Fischer

First part of our tutorial: Introducing our mobile x-rf instrument XAN®500.
