The Universal Thickness Gauge for Industrial Coating Thickness Measurement

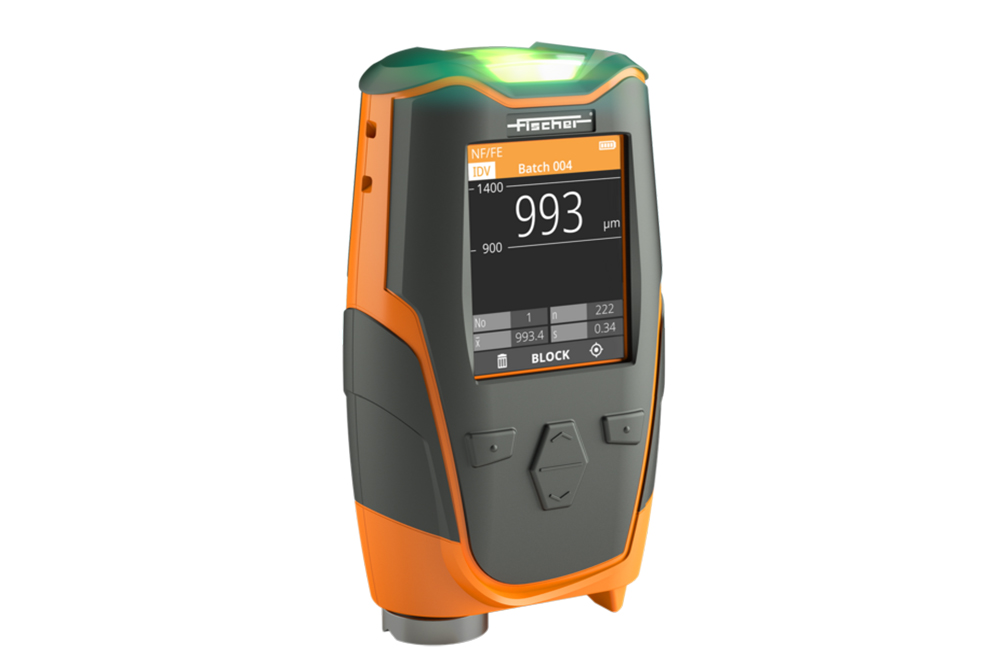

One coating thickness measuring device – diverse applications! The MMS® Inspection DFT is the all-rounder in the field of coating thickness measurement. Ideally suited for coating thickness measurement on both steel and non-ferrous metals, it finds application in a variety of industries. But here’s something special in a coating thickness gage: it’s protected against dust and water jets by an IP65-rated housing. Even under harsh conditions like in heavy corrosion protection, the dry film thickness gauge makes measuring is easy.

Applications

  • Non-magnetizable layers e.g. zinc, chrome, copper, paint, lacquer, ceramic or plastic on steel, iron or their cast materials; measuring range 0 – 2500 μm
  • Electrically non-conductive layers e.g. paint, lacquer, ceramic or plastic on aluminum, copper, brass and other non-magnetizable materials; measuring range 0 – 2000 μm
  • Anodized coatings on aluminum

Key Features

  • Coating thickness measurement according to DIN EN ISO 2178 and ASTM D7091 or DIN EN ISO 2360 and ASTM D7091
  • Evaluation according to the following standards: IMO PSPC, SSPC-PA2, ISO 19840, AS 3894.3 and SIS 184160 (gauge versions High)
  • Ideal for use in harsh environments: robust, ergonomic and easy to use with one hand – even when wearing gloves
  • Dustproof and protected against water jets in accordance with IP65
  • Intuitive user interface makes operation extremely simple: guided navigation through the functions of calibration, measurement and report generation
  • Direct monitoring of the tolerance limits, indicated by means of lights, sounds and vibration
  • Automatically rotating display makes reading the measured values easy in any measuring position
  • Automatic base material detection (gauge versions FE+NF)
  • Optional industrial package: 4 pre-configured batch types (applications) especially for coating thickness measurement in industrial settings
  • Optional corrosion package: 6 pre-configured batch types (applications) especially for measuring coating thickness in corrosion protection
  • Storage space for up to 250,000 measured values in 2500 batches (gauge versions ENHANCED and HIGH)
  • USB interface for secure and fast data transfer

MMS Inspection Dry Film Thickness (DFT) Teaser

One coating thickness gauge - diverse application possibilities! The MMS® Inspection DFT can be used for coating thickness measurement in heavy corrosion protection and industrial application.

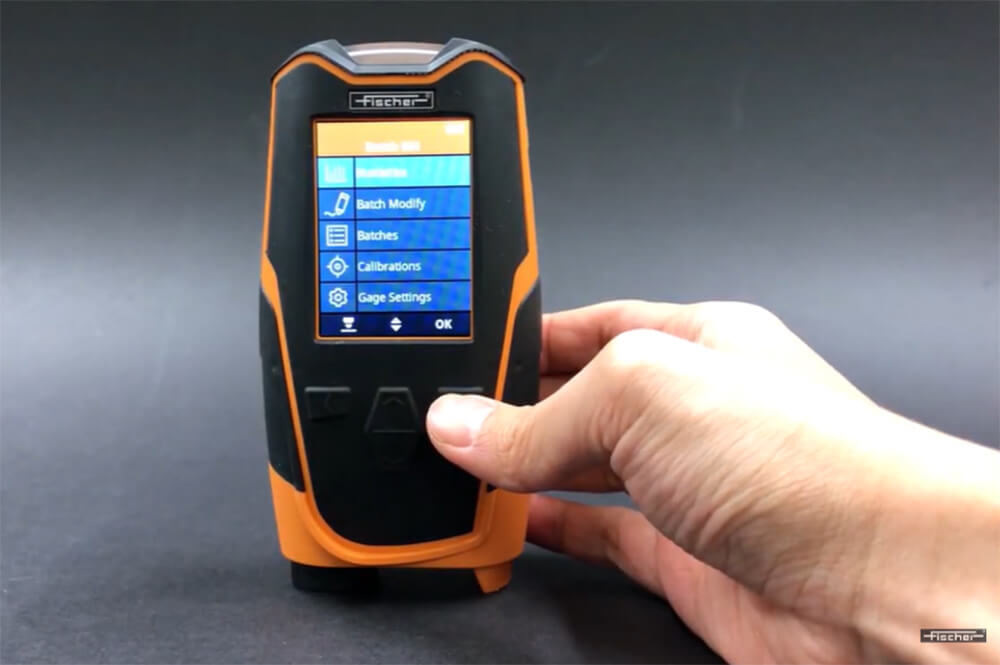

MMS Inspection DFT Tutorial: Introduction | Easy, Precise Coating Thickness Measurement | Fischer

Developed by anti-corrosion experts, the three instruments of the MMS® convince with robustness, user-friendliness and performance. The DFT is the handheld instrument for simple coating thickness measurement on steel and non-ferrous metals.

Helmut Fischer

Fischer is a leading specialist in material analysis, coating thickness measurement and material testing since 1953. We offer a wide range of measuring devices for different industries: from simple handheld devices for quick testing on the go to fully integrated, high-end systems that automatically monitor your production.

In the 1980s and 90s, Fischer greatly expanded its product range. In addition to a hardness tester, the first X-ray fluorescence (XRF) instrument was launched in 1981. Numerous patented innovations helped the devices to quickly establish themselves in industrial use – because customers appreciate the reliability and measuring precision of Fischer instruments.

[]
